Tie Rod

7
Issuing time:2025-10-30 21:18Author:Timothy Forging Industry

Tie Rod


A rod-shaped component in truss structures (such as steel-structured workshops, bridges) that connects two load-bearing members, bears tensile force, and maintains the overall stability of the structure, enhancing the structure's resistance to deformation.


(m%)Chemical Compososition (m%)

GradeCSiMnCrMoPS
42CrMo40.38-0.45≤ 0.400.60-0.900.90-1.200.15-0.30≤ 0.035≤ 0.035

Mechanical Property of mechanical properties

GradeTensile Strength Rm(MPa)Yield Strength Rp0.2(MPa)Elongation Elongation A(%)Surface shrinkage Reduction Area Z(%)Charpy V Impact Ak(J)Hardness HBW
42CrMo4≥ 1080≥ 930≥12≥45≥ 63≤ 217

Materials can be selected according to customer requirements.

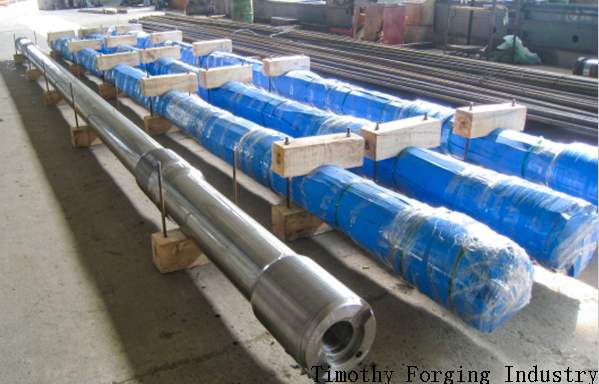

Tie Rod.png
