Motor Shafts

Motor Shafts

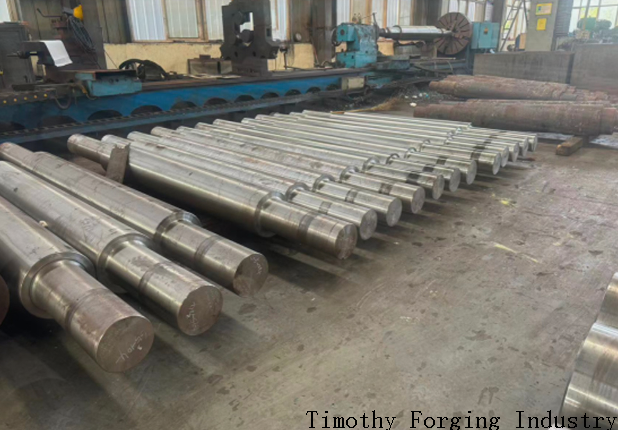

A motor shaft is a crucial component of an electric motor, which is used to connect the motor to mechanical equipment and transmit power. Here is a detailed introduction:

• Function: The motor shaft mainly has two functions. One is to convert the electromagnetic torque of the motor rotor into mechanical rotational force and output it to the transmission mechanism. The other is to connect the rotor core and external transmission components such as gears, pulleys, and couplings, and bear torque and radial loads.

•


• Material: Motor shafts are usually made of metal materials. Common ones include ordinary steel, which is suitable for mechanical equipment with small loads; alloy steel, which has high strength and hardness and is suitable for mechanical equipment with large loads; and stainless steel, which has good corrosion resistance and is suitable for mechanical equipment in wet or corrosive environments.

•


• Manufacturing Process: The manufacturing of motor shafts requires multiple processes, including forging, heat treatment, turning, milling, and grinding. Heat treatment, including quenching and tempering, can improve the strength, hardness, and toughness of the motor shaft. Grinding, including rough grinding and fine grinding, can improve the dimensional accuracy, surface finish, and wear resistance of the motor shaft.

•


• Connection Mode: The motor shaft is usually connected to external components through splines, flat keys, or flanges. For example, in the drive system of electric vehicles, splines or flat keys are often used to rigidly mesh with the gears of the reduction box, and flanges are used in hub motors to directly integrate the motor shaft and the hub.

•


• Application Field: Motor shafts are widely used in various fields. In the automotive industry, they drive accessories such as pumps, fans, and generators. In home appliances, motors in washing machines, air conditioners, and other appliances rely on shafts to rotate internal mechanical parts. In industrial equipment, motors in assembly lines and conveyor belts use shafts to transmit power. In addition, they are also used in power tools, wind power generation, pumps, fans, and other equipment.

•
