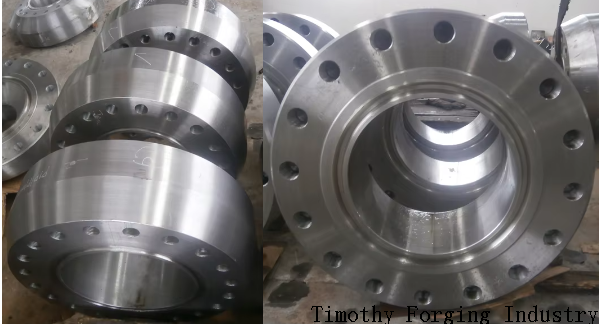

Forging Adaptor Flanges

Forging Adaptor Flanges

A forging adaptor flange is a type of flange that is manufactured through the forging process and is used to connect components with different specifications or connection types. Here is a detailed introduction:

1. Function

• Connection and Adaptation: Its main function is to connect pipes, valves, pumps, and other equipment with different nominal diameters, pressure ratings, or connection forms. For example, it can connect a pipe with a large diameter to a valve with a small diameter or connect a pipe with a threaded end to a device with a flanged end.

• Force Transmission and Sealing: It can evenly transmit the force in the pipeline system and ensure the sealing performance of the connection to prevent media leakage.

2. Material

• Common Materials: Usually made of carbon steel (such as A105), alloy steel (such as AISI 4130), and stainless steel (such as 304, 316). These materials have high strength, good corrosion resistance, and can meet the requirements of different working environments.

3. Manufacturing Process

• Forging: The forging process is first used to shape the metal blank, which can improve the density and mechanical properties of the material. Common forging methods include open die forging and closed die forging.

• Machining: After forging, machining operations such as turning, milling, drilling, and threading are carried out to achieve the required dimensions, tolerances, and surface finishes.

• Heat Treatment: Heat treatment processes such as quenching and tempering are often carried out to improve the strength, hardness, and toughness of the flange.

4. Connection Type

• Threaded Connection: Suitable for small-diameter pipes and low-pressure systems, with the advantages of convenient installation and disassembly.

• Welded Connection: Including socket weld and butt weld. Socket weld is suitable for small-diameter pipes, and butt weld is suitable for large-diameter pipes with high-pressure requirements, which can provide a reliable connection.

• Flanged Connection: Connected to other flanges through bolts, which is easy to install and maintain and is widely used in various industrial pipeline systems.

5. Application Field

• Oil and Gas Industry: Used in wellhead equipment, pipelines, and other places to connect various oil and gas production and transportation equipment. For example, wellhead adapter flanges need to meet the requirements of high pressure, high temperature, and corrosion resistance.

• Chemical Industry: In chemical pipelines, it is used to connect reactors, heat exchangers, pumps, and other equipment to ensure the safe and stable operation of the chemical system.

• Power Industry: Used in steam pipelines, water supply and drainage systems, etc. in power plants to transmit steam, water, and other media.

6. Standards and Specifications

• International Standards: Such as ASME B16.5, which specifies the dimensions, pressure ratings, and other technical requirements of flanges; API 6A, which is applicable to wellhead and Christmas tree equipment flanges in the oil and gas industry.

• Domestic Standards: Such as GB/T 9112 - 9124, which specifies various types of steel pipe flanges and their connection dimensions, technical requirements, etc. in China.

1.   Forging adaptor flange according to API 6A

2.   Steel grade :   4130

3.   Size range : 2-1/16" 5M -18-3/4" 15M

21-1/4” x 2M To 18-3/4” x 15M                             256
